Description

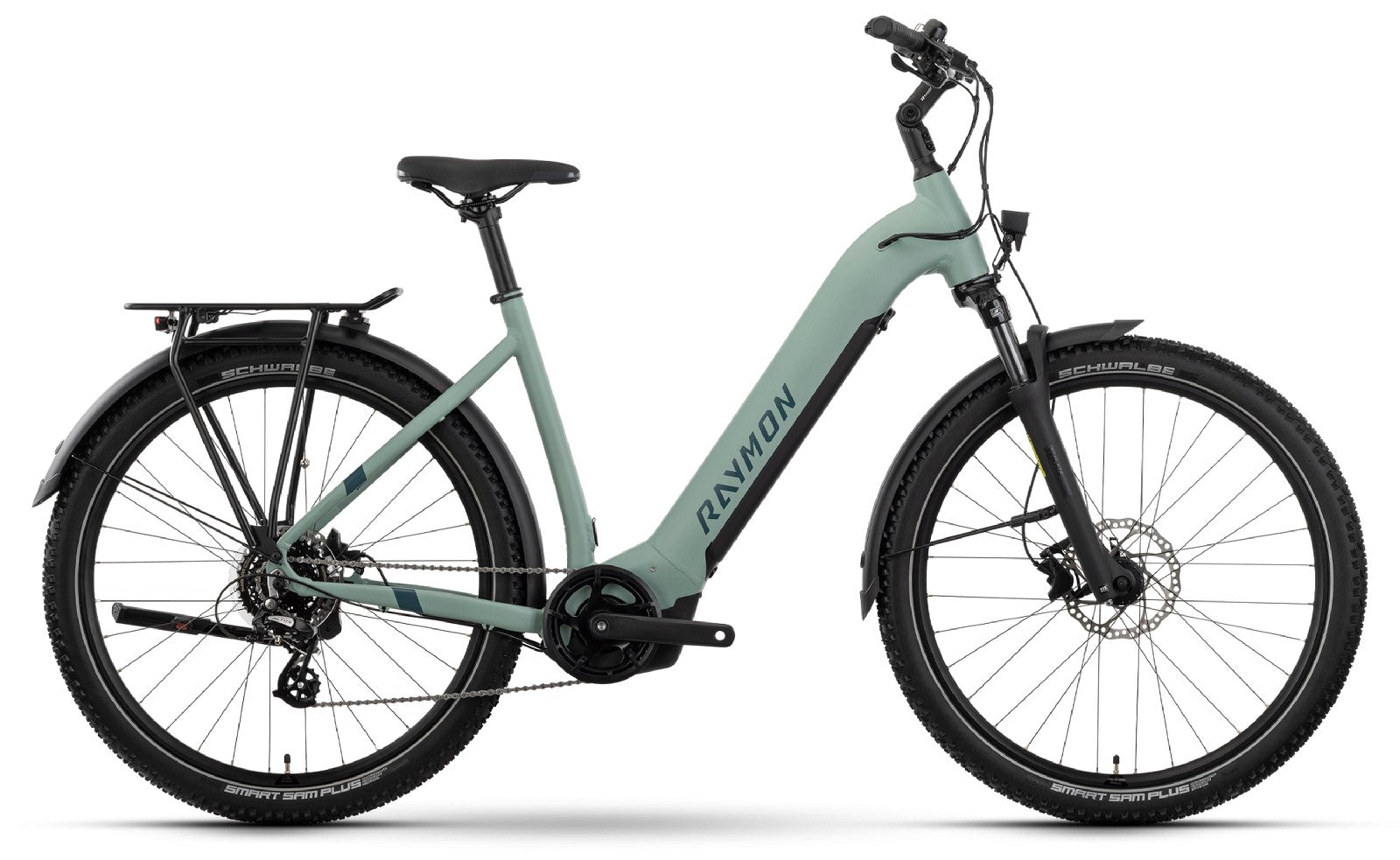

raymon trekking e-bike Raymon Tourray Select - 630 Wh - 2025 - 27,5 ZollTechnische Daten Motor und Akku Motor Yamaha PW ST 70 Nm Motorposition Mitte Drehmoment in Nm 70 Nm Akkuposition voll integriert, Akku herausnehmbar Akku Kapazitt 17,5 Ah Display Yamaha Display A Ladegert Yamaha Ladegert 4A Hchstgeschwindigkeit 25 km h Antrieb Rcktritt Freilauf Freilauf Schaltart Kettenschaltung Anzahl Gnge 8 Schaltwerk Shimano Altus, RD M310, 8 S Schalthebel Shimano SL M315, Rapidfire Plus Kette Riemen Kette Kette KMC e8S Kasette v:
Technische Daten
| Motor und Akku | |
| Motor | Yamaha PW-ST 70 Nm |
| Motorposition | Mitte |
| Drehmoment in Nm | 70 Nm |
| Akkuposition | voll integriert, Akku herausnehmbar |
| Akku Kapazität | 17,5 Ah |
| Display | Yamaha Display A |
| Ladegerät | Yamaha Ladegerät 4A |
| Höchstgeschwindigkeit | 25 km/h |
| Antrieb | |
| Rücktritt / Freilauf | Freilauf |
| Schaltart | Kettenschaltung |
| Anzahl Gänge | 8 |
| Schaltwerk | Shimano Altus, RD-M310, 8-S |
| Schalthebel | Shimano SL-M315, Rapidfire Plus |
| Kette / Riemen | Kette |
| Kette | KMC e8S |
| Kasette | v:Raymon, 38T, CG /h:Shimano CS-HG31, 11-34T |
| Kurbelsatz | Raymon FC17, forged alloy, JIS |
| Pedale | Raymon, Thermoplastic |
| Bremsen | |
| Bremsentyp | Scheibenbremse hydraulisch |
| Bremse vorne | Tektro TR24, 180 mm, 6-bolt |
| Bremse hinten | Tektro TR24, 160 mm, 6-bolt |
| Bremshebel vorne | Tektro |
| Bremshebel hinten | Tektro |
| Rahmen | |
| Rahmenform | Tiefeinsteiger |
| Rahmen | Aluminium 6061 |
| Gabel | SR Suntour XCM32-ATB, coil, 80 mm, tapered |
| Komponenten | |
| Griffe | Raymon Ergo, lock on |
| Lenker | Raymon Riser 31,8 mm, Sweep: 15 °, Rise: 30 mm |
| Vorbau | Raymon 31.8, Ahead, adjustable |
| Sattel | Raymon Tour classic |
| Sattelstütze | Raymon, 31,6 mm |
| Räder und Naben | |
| Radgröße | 27,5" |
| Reifen vorne | Schwalbe Advancer Hybrid, Reflex, 57-584, 27.5x2.25 |
| Reifen hinten | Schwalbe Advancer Hybrid, Reflex, 57-584, 27.5x2.25 |
| Felgen | Raymon VR24/DN619, 9x100/9x141 mm |
| Beleuchtung | |
| Scheinwerfer | AXA Nxt 30, 30 lx |
| Rücklicht | AXA Juno E |
| Schutze und Gepäckträger | |
| Schutzbleche | SKS PET |
| Ständer | Raymon, KSA40, adjustable |
| Gepäckträger | Raymon, MIK, 25 kg |
| Gewichte | |
| zulässiges Gesamtgewicht mit Fahrer und Zuladung | 130 kg |
| Gewicht E-Bike | 26,8 kg |
